Magicshine ME 1000 Smart E-Bike Light
Magicshine ME 1000 Smart E-Bike Light
99.99 CAD
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features at a Glance:
✔ Max Lumen: 1000 LM
✔ Max Throw: 140 m
✔ E-BIKE Compatible: 6-12V
✔ DRL: Support
✔ Anti-Glare: Support
✔ Brightness Sensor: Support
✔ Mounting System: One-side holder
✔ Waterproof: IPX6
ME 1000, designed specifically for e-bike riders, is connected and powered directly by the output of the e-bike motor (Shimano, Bosch, Brose, Yamaha, Giant, BaFang). NO BATTERY INCLUDED.
LIGHT MODES
| Mode | HIGH | MID | LOW | FLASH | DRL |
|---|---|---|---|---|---|
| LUMENS | 1000 | 500 | 350 | 0-350 | 15 |

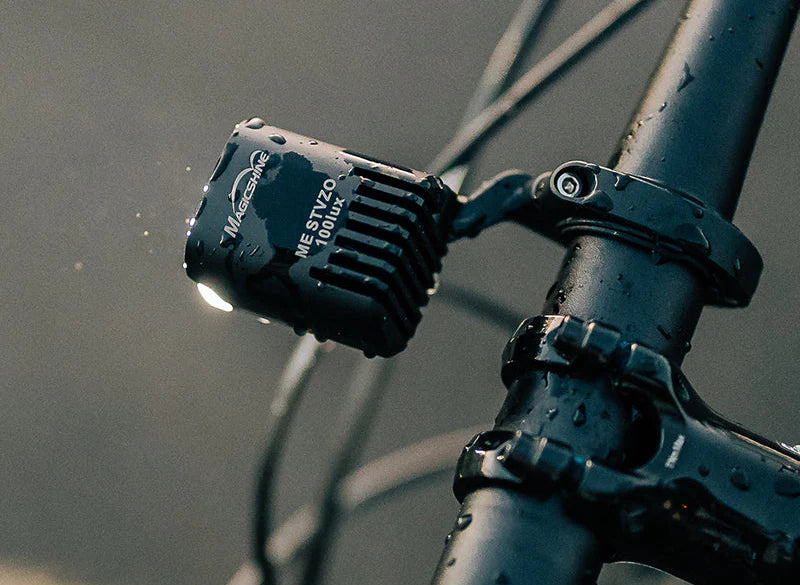

ME StVZO 100LUX, MAGICSHINE's first StVZO-approved (K 2185) headlight for e-bikes, gets its power directly from the motor, allowing for all-day adventures. Three high efficient LEDs project an impressive 900 lumens. Perfectly with an advanced StVZO-compliant optical lens, the light beam clearly distinguishes the light and shadow parts with an obvious cut-off line and is glare-free for oncoming road users.
STVZO-COMPLIANT ILLUMINATION
With an ingenious StVZO optical lens, the optimized beam radiates with a clear cut-off line and is soft to oncoming traffic.
6-36V E-BIKE COMPATIBLE
ME StVZO 100LUX can automatically adapt its power to the supply voltage and work with most E-bike systems from 6-36V, like Bosch, Shimano, Brose, and Yamaha.
ALUMINUM HOUSING
One-piece seamless aluminum housing provides unmatched protection andoptimal cooling whatever the conditions.
Technical Specifications
| Specifications | Parameter |
|---|---|
| Max Lumen | 1000 LM |
| LED | Luminus SST-40 |
| Beam Angle | 27° |
| Max Throw | 140 m |
| E-BIKE Compatible | 6-12V |
| DRL | Support |
| Anti-Glare | Support |
| Brightness Sensor | Support |
| Suitable Handlebar Range | 31.8mm - 35mm |
| Beam Intensity | 4900 CD |
| Waterproof Rate | IPX6 |
| Weight | 92g / 3.24 oz |
| Dimensions | 40*36*36 mm / 1.57*1.41*1.41 in |
| Material | Aluminum |
| Mounting System | One-side holder |
E-Bike Lights Compatibility
ME1000 can be powered directly from the light output of the motor, just like our other e-bike lights.
Click the following link to know whether the ME1000 is compatible with your motor or not.
What's in the Box?
ME 1000 E-bike Light x 1
Silicone Pad x 2
3mm hex x 1
User Manual x 1(Manual Download Here)
